TAP IE 100, Ethernet Test Access Point 700-800-TAP01

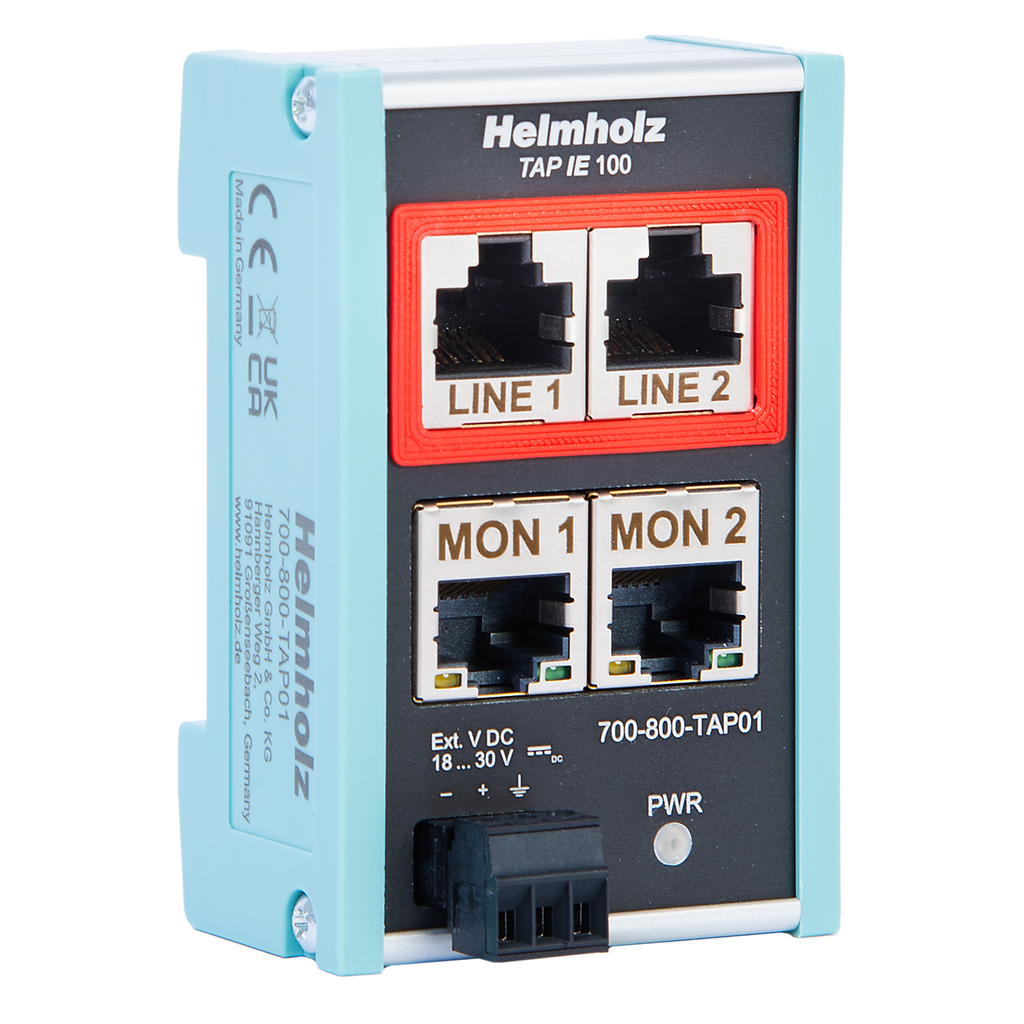

The TAP IE 100 enables recording of Ethernet communications at 10 or 100Mbps without retroactive effect. The Ethernet transmission via the Line RJ45 sockets is sent out on the two monitor sockets as a "copy". With a PC or other diagnostic device the Ethernet telegrams can be logged and analyzed, e.g. with "Wireshark". The practical flat design with the intelligent arrangement of the network connections saves space in the control cabinet.
The network line is looped through the TAP IE 100 without feedback ("LINE 1" / "LINE 2"). The monitor
RJ45 socket ("MON 1/"MON 2") sends the data out separately from the communication partners.
The transmission between the two communication partners works even if the TAP IE 100 is not supplied
with voltage or if no cables are connected to the monitoring sockets. Connecting or disconnecting the
monitoring cables or the diagnostic device has no effect on the communication via the LINE sockets.
General information
- Scope of delivery - TAP IE 100 with power supply plug
- Dimensions (DxWxH) - 34.5 x 48 x 75.5 mm (without power supply plug)
- Weight - 95 g
Ethernet interface
- Connection - 2 x RJ45 „LINE“ & 2 x RJ45 „MON“ (Monitor)
- Protocol -10 Base-T, 100 Base-TX
- Transmission rate - 10/100 Mbit/s
Status indication
- Power indication - 1 LEDs
- Ethernet status - 2 LEDs
Power supply
- Voltage supply - 2x DC 24 V, 18 − 30 V DC
- Current draw - max. 0.9 W
- Power dissipation - max. 40 mA at DC 24 V
Ambient conditions
- Ambient temperature - -40 °C ... +75°C
- Transport and storage temperature - -40 °C ... +85°C
- Relative air humidity - 95 % r H without condensation
- Protection rating - IP20
- Mounting position - Any
- Approvals - CE
