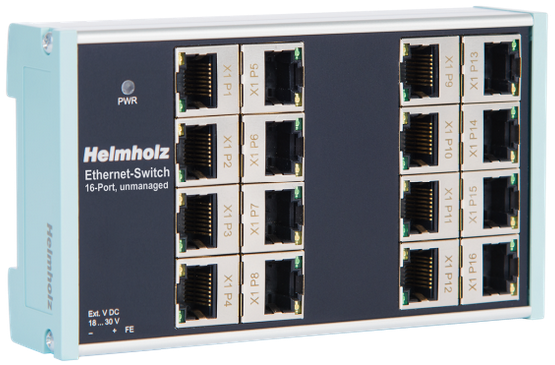

Unmanaged Industrial Ethernet Switch, 16 Port - 700-840-16S01

16-port, unmanaged

The Helmholz unmanaged Ethernet switches are suitable for a variety of industrial applications because of their very compact design. The lightweight and tough industrial design is suitable for mounting on a DIN rail and can be easily integrated into your network. Once plugged in, it's ready for use thanks to the simple Plug & Play solution. The tool-free push-in connection for the power supply supports you.

With this variant of the unmanaged Ethernet Switch, you can connect up to 16 Ethernet participants with 10 or 100 Mbps.

• • Store-and-Forward architecture
  • 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation)
  • HP Auto MDI/MDI-X & IEEE 802.3u Auto crossover support
  • CoS according to IEEE 802.1Q
  • Qos-Priority-Queues: 8
  • LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
  • PROFINET Conformance Class A
  • 2x 16K MAC address lookup table
  • 2x 256 KByte memory for frame buffering
  • IEEE 802.3x Full duplex flow control
  • Up to 51 Gbps high-performance memory bandwidth
  • support frame sizes up to 10KByte
