PROFIBUS Connector, with diagnostic LEDs, EasyConnect® 700-972-7BB50

90° with diagnostic LEDs EasyConnect®, for solid cables, with prog. device connector

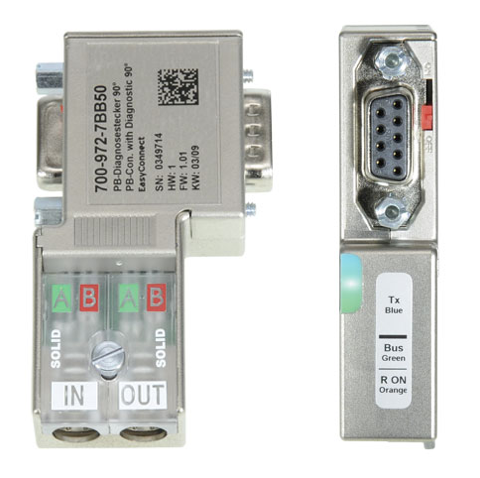

The PROFIBUS connector 90° with diagnostic LEDs EasyConnect® features quick-connect technology, which makes stripping the bus wires unnecessary. Once the cable has been installed it is easy to check (visual inspection) that the PROFIBUS cable has been correctly connected.
The housing is metallized for improved electromagnetic compatibility.
The PROFIBUS diagnostic connector can be used to connect a PROFIBUS network in which the user can check the status of the bus system at any time at a glance.
The three built-in LEDs with the easily distinguished colors blue, green and orange indicate the most important states of the PROFIBUS network at each station.
The state of the terminating resistor (orange), whether bus activity is in progress (green) and whether the station addressed is participating in bus traffic (blue) are all indicated.
This means errors, such as bus interruptions, missing or incorrectly connected terminating resistors and malfunctioning or failed bus stations can be detected immediately.
The EasyConnect® connector also works in the extended ambient temperature range of -25 °C to +85 °C*.

Features
• 3 status LEDs indicate “bus operation”, “station transmitting”, “terminating resistor inserted”
• Metalized housing
• Integrated switchable terminating resistor
• 90° cable outlet
• EasyConnect® technology
• Visual connection control

Compatible with Siemens Fast Connect PROFIBUS Cables
