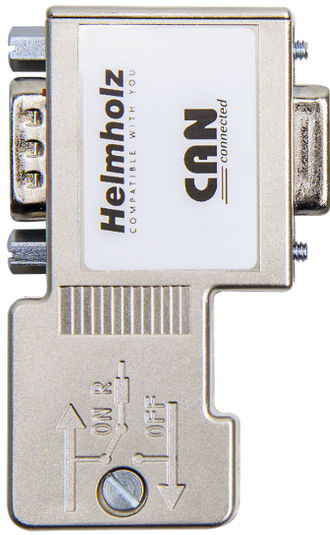

CAN bus connector 90°, with additional connection jack - 700-690-1BB12
CAN-Bus Connector 90° with additional connection jack
Helmholz offers you the CAN bus connector for transmission rates up to 1 Mbps.
The CAN bus connector is plugged directly onto the CAN bus interface (SUB-D socket, 9-pin) of the CAN bus participants. The CAN bus cables are connected using 6-pin screw terminals.
A slide switch is used to set whether the connector is to be used as a node or at the segment end.
The switch can also be operated in the installed condition. The setting is clearly visible.
In node setting (“OFF”), the connector must be operated when the incoming and outgoing bus are connected to each other. The terminating resistor is then ineffective.
As segment end (“ON”), the connector must be set on the first and last (outermost) participants of the segment respectively. In this case the terminating resistor is connected on the incoming bus, and the outgoing bus is disconnected.
The CAN connectors also work in the extended ambient temperature range of -25 °C to +85 °C.
Additional participants can be connected via the with additional connection jack.
- 24 V for participant supply
- Metalized housing
- No parts that can be lost
- Small size
- The maximum ambient temperature for UL is +60 °C
- additional connection jack
