TB20 I/O System

The Powerful TB20 Distributed I/O System from Systeme Helmholz

The compact, modular and low cost I/O system provides connectivity to the leading networks in the world: ProfiBUS DP, ProfiNET, Ethernet IP, Modbus TCP, CanOpen and more!

Designed to reduce the number of part numbers required, the TB20 I/O system does not need a power module as it is integrated into the bus coupler.  The I/O modules are a three piece design including the base module, terminal block & the electronics and are available in densities from 2 points to 16 points allowing for up to 67% space savings over other I/O systems.  A total of 64 modules can be connected to an individual bus coupler.

The free TB20 Toolbox software can be used to design the configuration, simulate the I/O and provide diagnostic data.  DOWNLOADS:    USB Driver    TB20 Toolbox

     *For any modules not listed, please contact us for availability.

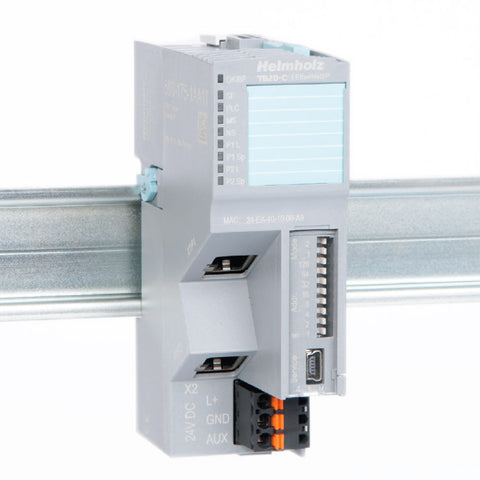

    .Bus Coupler TB20-C EtherNet/IP - 600-175-1AA11

    .Bus Coupler TB20-C EtherNet/IP - 600-175-1AA11

    $ 311.00

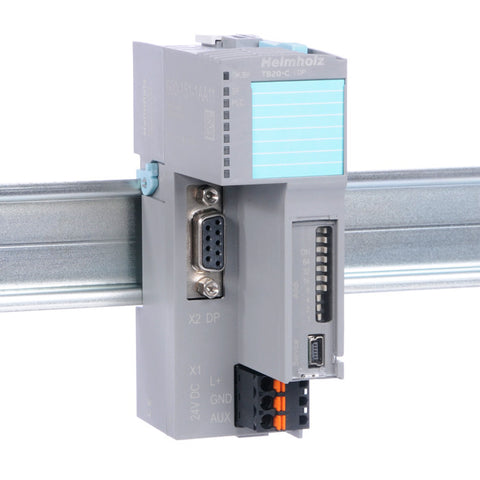

    .Bus Coupler TB20-C PROFIBUS-DP Slave - 600-151-1AA11

    .Bus Coupler TB20-C PROFIBUS-DP Slave - 600-151-1AA11

    $ 292.00

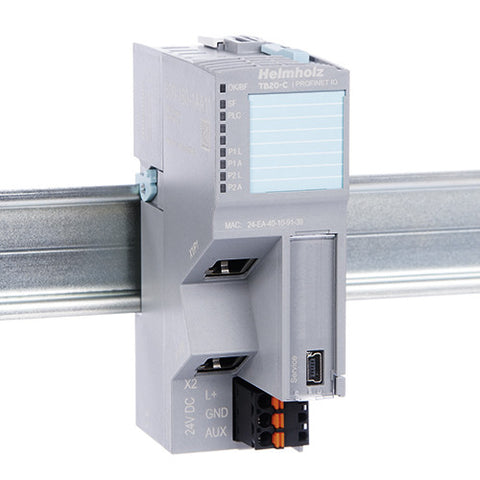

    .Bus Coupler TB20-C PROFINET IO - 600-180-1AA11

    .Bus Coupler TB20-C PROFINET IO - 600-180-1AA11

    $ 349.00

    Analog Input Module - AI 2/4 x R, RTD, 16-Bit, 2/3/4-wire - 600-253-4AD01

    Analog Input Module - AI 2/4 x R, RTD, 16-Bit, 2/3/4-wire - 600-253-4AD01

    $ 349.00

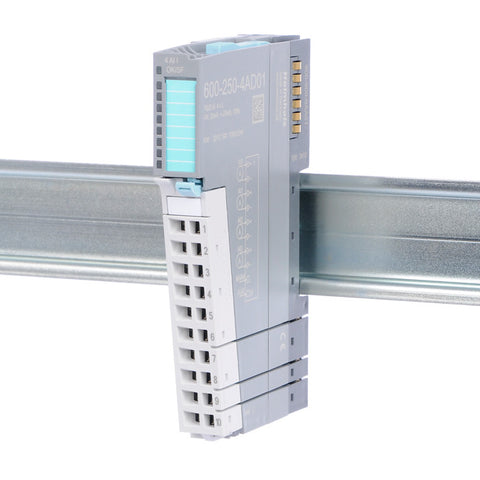

    Sold Out Analog Input Module - AI 4 x I, 0/4-20 mA, ±20 mA, 12-Bit - 600-250-4AD01

    Analog Input Module - AI 4 x I, 0/4-20 mA, ±20 mA, 12-Bit - 600-250-4AD01

    $ 291.00

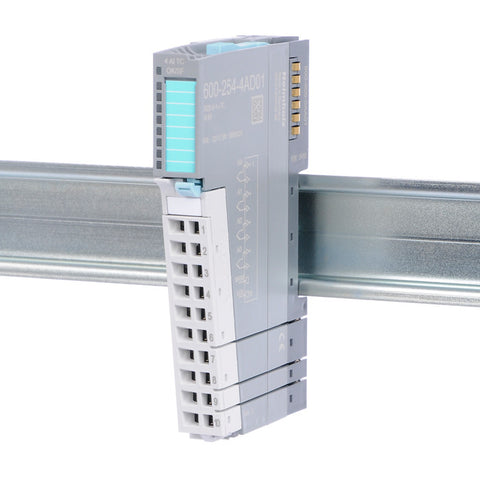

    Analog Input Module - AI 4 x TC, 16-Bit - 600-254-4AD01

    Analog Input Module - AI 4 x TC, 16-Bit - 600-254-4AD01

    $ 300.00

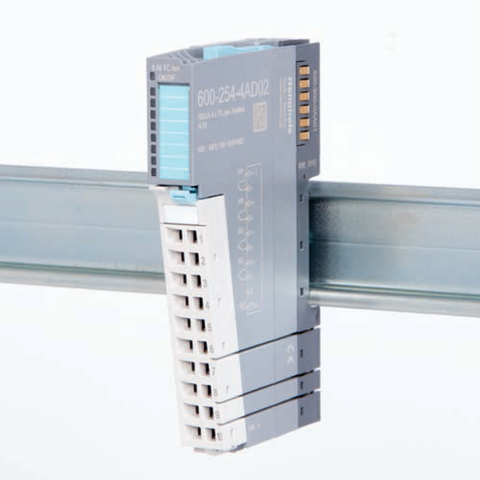

    Analog Input Module - AI 4 x TC, 16-Bit isolated - 600-254-4AD02

    Analog Input Module - AI 4 x TC, 16-Bit isolated - 600-254-4AD02

    $ 375.00

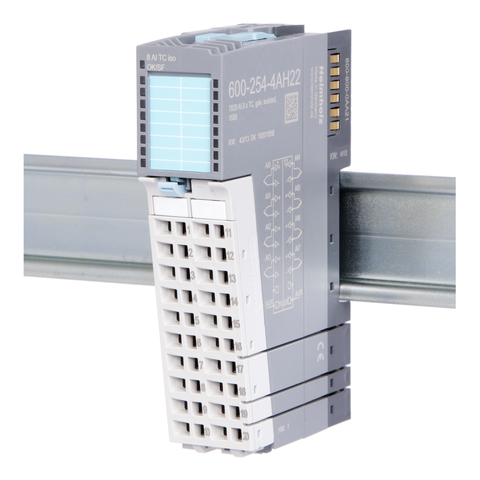

    Analog input module - AI 8 x TC, Iso., 16 Bit - 600-254-4AH22

    Analog input module - AI 8 x TC, Iso., 16 Bit - 600-254-4AH22

    $ 621.00

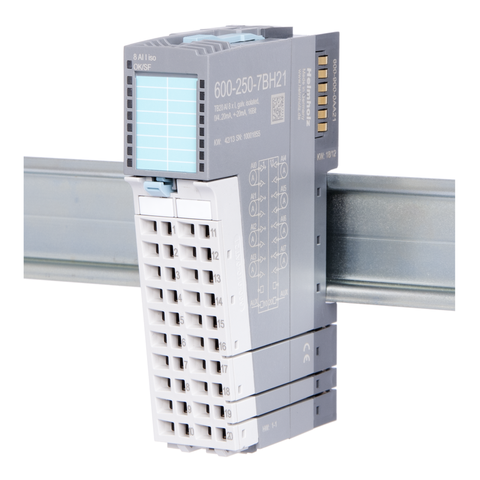

    Analog Input Module AI 8 x I, 0/4-20 mA, ±20 mA, Iso., 16 Bit - 600-250-7BH21

    Analog Input Module AI 8 x I, 0/4-20 mA, ±20 mA, Iso., 16 Bit - 600-250-7BH21

    $ 564.00

    Analog Output Module - AO 2 x U,±10V,0-10V,1-5V, 12-Bit - 600-261-4AB01

    Analog Output Module - AO 2 x U,±10V,0-10V,1-5V, 12-Bit - 600-261-4AB01

    $ 243.00

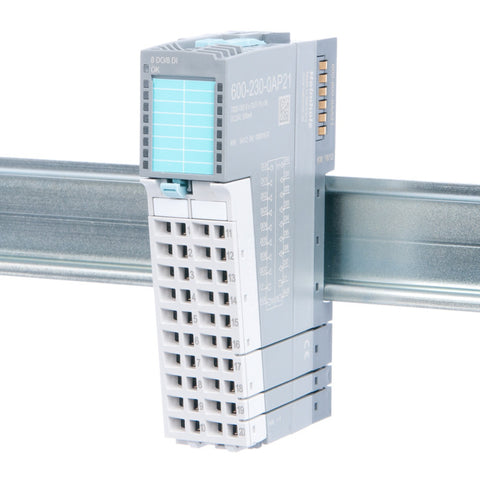

    Digital Combo Module - 8DI/8DO x 24 VDC, 500 mA - 600-230-0AP21

    Digital Combo Module - 8DI/8DO x 24 VDC, 500 mA - 600-230-0AP21

    $ 155.00

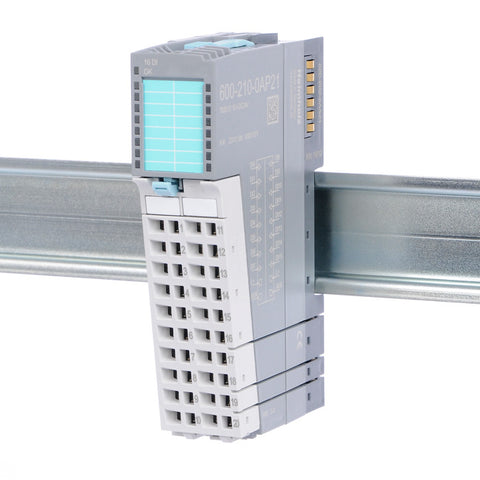

    Sold Out Digital Input Module - DI 16 x 24 VDC - 600-210-0AP21

    Digital Input Module - DI 16 x 24 VDC - 600-210-0AP21

    $ 147.00

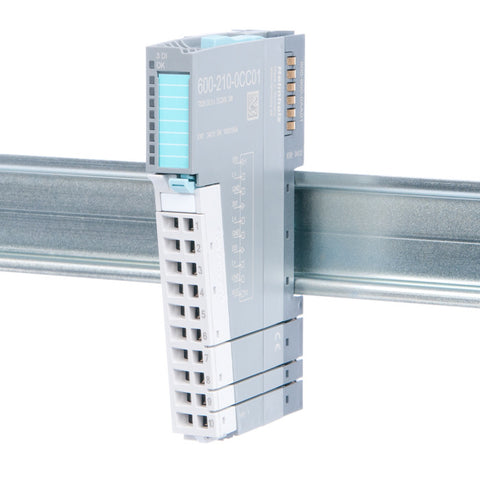

    Digital Input Module - DI 3 x 24 VDC, 3-wire - 600-210-0CC01

    Digital Input Module - DI 3 x 24 VDC, 3-wire - 600-210-0CC01

    $ 45.00

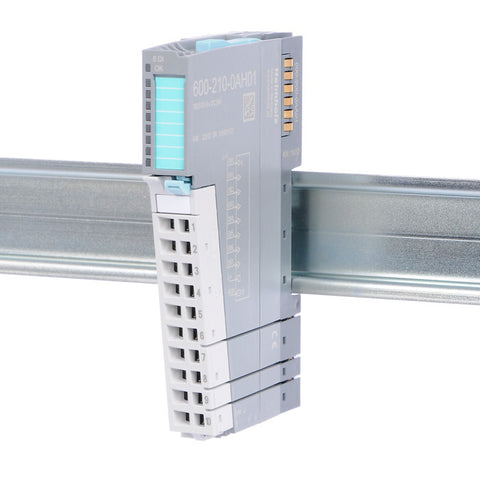

    Digital Input Module - DI 8 x 24 VDC 600-210-0AH01

    Digital Input Module - DI 8 x 24 VDC 600-210-0AH01

    $ 79.00

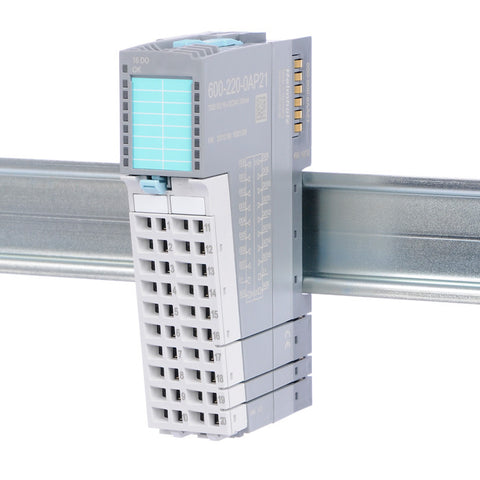

    Sold Out Digital Output Module - DO 16 x 24 VDC, 500 mA - 600-220-0AP21

    Digital Output Module - DO 16 x 24 VDC, 500 mA - 600-220-0AP21

    $ 162.00

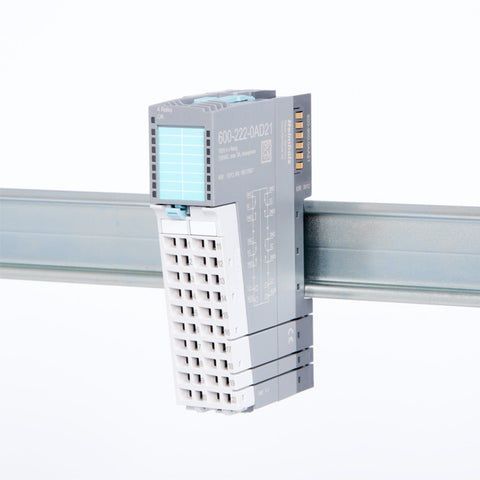

    Digital Output Module - DO 4 relays, 5 A, 230 VAC, change-over - 600-222-0AD21

    Digital Output Module - DO 4 relays, 5 A, 230 VAC, change-over - 600-222-0AD21

    $ 143.00

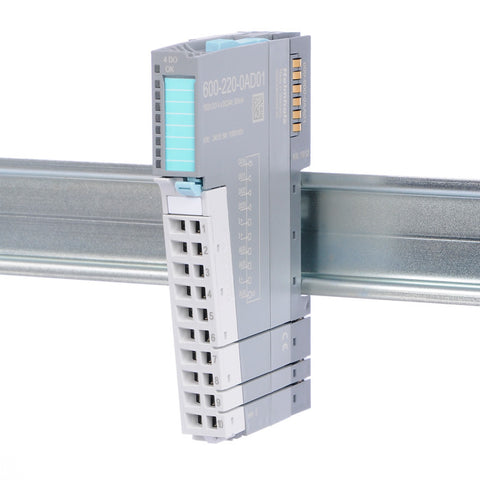

    Digital Output Module - DO 4 x 24 VDC, 500 mA - 600-220-0AD01

    Digital Output Module - DO 4 x 24 VDC, 500 mA - 600-220-0AD01

    $ 66.00

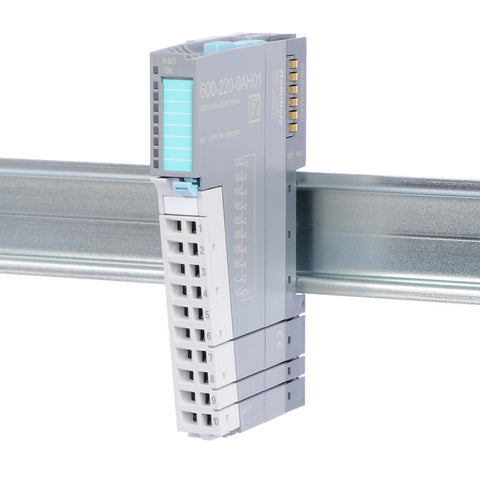

    Digital Output Module - DO 8 x 24 VDC, 500 mA - 600-220-0AH01

    Digital Output Module - DO 8 x 24 VDC, 500 mA - 600-220-0AH01

    $ 85.00

    System Module - Potential Distributor 4 x 24 VDC + 4 x GND - 600-720-0DH01

    System Module - Potential Distributor 4 x 24 VDC + 4 x GND - 600-720-0DH01

    $ 38.00

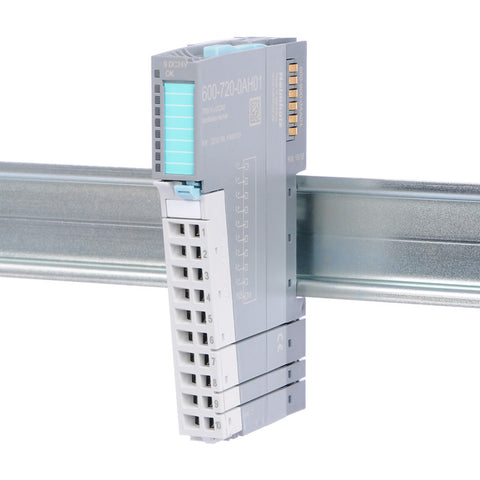

    System Module - Potential Distributor 9 x 24 VDC - 600-720-0AH01

    System Module - Potential Distributor 9 x 24 VDC - 600-720-0AH01

    $ 38.00
